How To Save Data from Arduino To A .csv File Using Processing

November 12, 2014 Elaine Laguerta 23 Comments

Introduction

Spreadsheets are awesome! They are a ubiquitous and powerful file structure that can cause headache and joy in equally heart-stopping intensities. Within the context of a larger project, you may want to save Arduino data (from sensors, for example) to a .csv file for further analysis, visualization, or whatever spreadsheet bonanzas you can dream up. The following two sketches save data from Arduino to a .csv file on your computer, complete with a timestamp with gloriously specific column names (year, month, day, hour, minute, second…and you can add milliseconds!).

This 2-sketch solution takes advantage of the built-in Table class in Processing. Tables are also awesome, as they are basically spreadsheets in the Processing world. Read all about them (this link has some handy methods for working with tables beyond what this tutorialprovides): http://processing.org/reference/javadoc/core/processing/data/Table.html

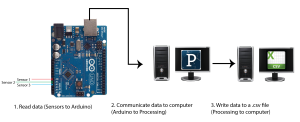

Here is an overview of what this tutorial accomplishes:

This is a beginning-level tutorial with one prerequisite! Arduino and Processing have to shake hands. I know it’s a lot to ask, but cooperation is at the root of any good spreadsheet. Here’s a link to a tutorial: http://www.hackerscapes.com/2014/10/lab-6-processing/

First, Download and Install the following:

Arduino IDE: http://arduino.cc/en/main/software
Processing 2.0: https://www.processing.org/download/

Step 1: Read Data, Send to Processing via Serial Port

First, set up the Arduino side. Here’s a a gist-y sketch:

/*
Sending Data to Processing via the Serial Port
This sketch provides a basic framework to send data from Arduino to Processing over a Serial Port. This is a beginning level sketch.

Hardware:
* Sensors connected to Arduino input pins
* Arduino connected to computer via USB cord

Software:
*Arduino programmer
*Processing (download the Processing software here: https://www.processing.org/download/

Additional Libraries:
*Read about the Software Serial library here: http://arduino.cc/en/Reference/softwareSerial

Created 12 November 2014
By Elaine Laguerta
http://url/of/online/tutorial.cc
*/

/*To avoid overloading the Arduino memory, and to encourage portability to smaller microprocessors, this sketch
does not timestamp or transform data. In this tutorial, timestamping data is handled on the processing side.

Whether you process data on the Arduino side is up to you. Given memory limitations of the Arduino, even a few computations and mapping of values can
max out the memory and fail. I recommend doing as little as possible on the Arduino board.*/

#include SoftwareSerial.h

/*Declare your sensor pins as variables. I'm using Analog In pins 0 and 1. Change the names and numbers as needed
Pro tip: If you're pressed for memory, use #define to declare your sensor pins without using any memory. Just be careful that your pin name shows up NOWHERE ELSE in your sketch!
for more info, see: http://arduino.cc/en/Reference/Define
*/
int sensor1Pin = 0;
int sensor2Pin = 1;
int sennsor3Pin = 2;

/*Create an array to store sensor values. I'm using floats. Floats use 4 bytes to represent numbers in exponential notation. Use int if you are representing whole numbers from -32,768 to 32,767.
For more info on the appropriate data type for your sensor values, check out the language reference on data type: http://arduino.cc/en/Reference/HomePage
Customize the array's size to be equal to your number of sensors.
*/
float sensorVals[] = {0,0,0}

/*Pro tip: if you have a larger number of sensors, you can use a for loop to initialize your sensor value array. Here's sample code (assuming you have 6 sensor values):
float sensorVals[6];
int i;
for (i=0; i&lt;6; i++)
{
sensorVals[i] = 0;
}
*/

void setup(){
Serial.begin(9600); //This line tells the Serial port to begin communicating at 9600 bauds
}

//
void loop(){
//read each sensor value. We are assuming analog values. Customize as nessary to read all of your sensor values into the array. Remember to replace "sensor1Pin" and "sensor2Pin" with your actual pin names from above!
sensorVal[0] = analogRead(sensor1Pin);
sensorVal[1] = analogRead(sensor2Pin);
sensorVal[2] = analogRead(sensor3Pin);
/*If you are reading digital values, use digitalRead() instead. Here's an example:
sensorVal[0] = digitalRead(sensor1Pin);
*/

//print over the serial line to send to Processing. To work with the processisng sketch we provide, follow this easy convention: separate each sensor value with a comma, and separate each cycle of loop with a newline character.
//Remember to separate each sensor value with a comma. Print every value and comma using Serial.print(), except the last sensor value. For the last sensor value, use Serial.println()
Serial.print(sensors[0]);
Serial.print(",");
Serial.print(sensors[1]);
Serial.print(",");
Serial.println(sensors[1]);
delay(100);
}

Sending Data to Processing via the Serial Port

This sketch provides a basic framework to send data from Arduino to Processing over a Serial Port. This is a beginning level sketch.

Hardware:

* Sensors connected to Arduino input pins

* Arduino connected to computer via USB cord

Software:

*Arduino programmer

*Processing (download the Processing software here: https://www.processing.org/download/

Additional Libraries:

*Read about the Software Serial library here: http://arduino.cc/en/Reference/softwareSerial

Created 12 November 2014

By Elaine Laguerta

http://url/of/online/tutorial.cc

/*To avoid overloading the Arduino memory, and to encourage portability to smaller microprocessors, this sketch

does not timestamp or transform data. In this tutorial, timestamping data is handled on the processing side.

Whether you process data on the Arduino side is up to you. Given memory limitations of the Arduino, even a few computations and mapping of values can

max out the memory and fail. I recommend doing as little as possible on the Arduino board.*/

#include SoftwareSerial.h

/*Declare your sensor pins as variables. I'm using Analog In pins 0 and 1. Change the names and numbers as needed

Pro tip: If you're pressed for memory, use #define to declare your sensor pins without using any memory. Just be careful that your pin name shows up NOWHERE ELSE in your sketch!

for more info, see: http://arduino.cc/en/Reference/Define

int sensor1Pin = 0;

int sensor2Pin = 1;

int sennsor3Pin = 2;

/*Create an array to store sensor values. I'm using floats. Floats use 4 bytes to represent numbers in exponential notation. Use int if you are representing whole numbers from -32,768 to 32,767.

For more info on the appropriate data type for your sensor values, check out the language reference on data type: http://arduino.cc/en/Reference/HomePage

Customize the array's size to be equal to your number of sensors.

float sensorVals[] = {0,0,0}

/*Pro tip: if you have a larger number of sensors, you can use a for loop to initialize your sensor value array. Here's sample code (assuming you have 6 sensor values):

float sensorVals[6];

int i;

for (i=0; i<6; i++)

{

sensorVals[i] = 0;

}

void setup(){

Serial.begin(9600); //This line tells the Serial port to begin communicating at 9600 bauds

}

void loop(){

//read each sensor value. We are assuming analog values. Customize as nessary to read all of your sensor values into the array. Remember to replace "sensor1Pin" and "sensor2Pin" with your actual pin names from above!

sensorVal[0] = analogRead(sensor1Pin);

sensorVal[1] = analogRead(sensor2Pin);

sensorVal[2] = analogRead(sensor3Pin);

/*If you are reading digital values, use digitalRead() instead. Here's an example:

sensorVal[0] = digitalRead(sensor1Pin);

//print over the serial line to send to Processing. To work with the processisng sketch we provide, follow this easy convention: separate each sensor value with a comma, and separate each cycle of loop with a newline character.

//Remember to separate each sensor value with a comma. Print every value and comma using Serial.print(), except the last sensor value. For the last sensor value, use Serial.println()

Serial.print(sensors[0]);

Serial.print(",");

Serial.print(sensors[1]);

Serial.print(",");

Serial.println(sensors[1]);

delay(100);

}

Step 2: Use Processing to Receive Data from Arduino, Write data to a Table, and Save Table to a .csv
Now we will handle the processing side.

/*
  Saving Values from Arduino to a .csv File Using Processing - Pseduocode

  This sketch provides a basic framework to read data from Arduino over the serial port and save it to .csv file on your computer.
  The .csv file will be saved in the same folder as your Processing sketch.
  This sketch takes advantage of Processing 2.0's built-in Table class.
  This sketch assumes that values read by Arduino are separated by commas, and each Arduino reading is separated by a newline character.
  Each reading will have it's own row and timestamp in the resulting csv file. This sketch will write a new file a set number of times. Each file will contain all records from the beginning of the sketch's run.
  This sketch pseduo-code only. Comments will direct you to places where you should customize the code.
  This is a beginning level sketch.

  The hardware:
  * Sensors connected to Arduino input pins
  * Arduino connected to computer via USB cord

  The software:
  *Arduino programmer
  *Processing (download the Processing software here: https://www.processing.org/download/
  *Download the Software Serial library from here: http://arduino.cc/en/Reference/softwareSerial

  Created 12 November 2014
  By Elaine Laguerta
  http://url/of/online/tutorial.cc

*/

import processing.serial.*;
Serial myPort; //creates a software serial port on which you will listen to Arduino
Table dataTable; //table where we will read in and store values. You can name it something more creative!

int numReadings = 500; //keeps track of how many readings you'd like to take before writing the file.
int readingCounter = 0; //counts each reading to compare to numReadings.

String fileName;
void setup()
{
  String portName = Serial.list()[1];
  //CAUTION: your Arduino port number is probably different! Mine happened to be 1. Use a "handshake" sketch to figure out and test which port number your Arduino is talking on. A "handshake" establishes that Arduino and Processing are listening/talking on the same port.
  //Here's a link to a basic handshake tutorial: https://processing.org/tutorials/overview/

  myPort = new Serial(this, portName, 9600); //set up your port to listen to the serial port

  table.addColumn("id"); //This column stores a unique identifier for each record. We will just count up from 0 - so your first reading will be ID 0, your second will be ID 1, etc.

  //the following adds columns for time. You can also add milliseconds. See the Time/Date functions for Processing: https://www.processing.org/reference/
  table.addColumn("year");
  table.addColumn("month");
  table.addColumn("day");
  table.addColumn("hour");
  table.addColumn("minute");
  table.addColumn("second");

  //the following are dummy columns for each data value. Add as many columns as you have data values. Customize the names as needed. Make sure they are in the same order as the order that Arduino is sending them!
  table.addColumn("sensor1");
  table.addColumn("sensor2");

}

void serialEvent(Serial myPort){
  val = myPort.readStringUntil('\n'); //The newline separator separates each Arduino loop. We will parse the data by each newline separator.
  if (val!= null) { //We have a reading! Record it.
    val = trim(val); //gets rid of any whitespace or Unicode nonbreakable space
    println(val); //Optional, useful for debugging. If you see this, you know data is being sent. Delete if  you like.
    float sensorVals[] = float(split(val, ',')); //parses the packet from Arduino and places the valeus into the sensorVals array. I am assuming floats. Change the data type to match the datatype coming from Arduino.

    TableRow newRow = dataTable.addRow(); //add a row for this new reading
    newRow.setInt("id", table.lastRowIndex());//record a unique identifier (the row's index)

    //record time stamp
    newRow.setInt("year", year());
    newRow.setInt("month", month());
    newRow.setInt("day", day());
    newRow.setInt("hour", hour());
    newRow.setInt("minute", minute());
    newRow.setInt("second", second());

    //record sensor information. Customize the names so they match your sensor column names.
    newRow.setFloat("sensor1", sensorVals[0]);
    newRow.setFloat("sensor2", sensorVals[1]);

    readingCounter++; //optional, use if you'd like to write your file every numReadings reading cycles

    //saves the table as a csv in the same folder as the sketch every numReadings.
    if (readingCounter % numReadings ==0)//The % is a modulus, a math operator that signifies remainder after division. The if statement checks if readingCounter is a multiple of numReadings (the remainder of readingCounter/numReadings is 0)
    {
      fileName = str(year()) + str(month()) + str(day()) + str(dataTable.lastRowIndex()); //this filename is of the form year+month+day+readingCounter
      saveTable(dataTable, fileName); //Woo! save it to your computer. It is ready for all your spreadsheet dreams.
    }
   }
}

void draw()
{
   //visualize your sensor data in real time here! In the future we hope to add some cool and useful graphic displays that can be tuned to different ranges of values.
}

Saving Values from Arduino to a .csv File Using Processing - Pseduocode

This sketch provides a basic framework to read data from Arduino over the serial port and save it to .csv file on your computer.

The .csv file will be saved in the same folder as your Processing sketch.

This sketch takes advantage of Processing 2.0's built-in Table class.

This sketch assumes that values read by Arduino are separated by commas, and each Arduino reading is separated by a newline character.

Each reading will have it's own row and timestamp in the resulting csv file. This sketch will write a new file a set number of times. Each file will contain all records from the beginning of the sketch's run.

This sketch pseduo-code only. Comments will direct you to places where you should customize the code.

This is a beginning level sketch.

The hardware:

* Sensors connected to Arduino input pins

* Arduino connected to computer via USB cord

The software:

*Arduino programmer

*Processing (download the Processing software here: https://www.processing.org/download/

*Download the Software Serial library from here: http://arduino.cc/en/Reference/softwareSerial

Created 12 November 2014

By Elaine Laguerta

http://url/of/online/tutorial.cc

import processing.serial.*;

Serial myPort; //creates a software serial port on which you will listen to Arduino

Table dataTable; //table where we will read in and store values. You can name it something more creative!

int numReadings = 500; //keeps track of how many readings you'd like to take before writing the file.

int readingCounter = 0; //counts each reading to compare to numReadings.

String fileName;

void setup()

{

String portName = Serial.list()[1];

//CAUTION: your Arduino port number is probably different! Mine happened to be 1. Use a "handshake" sketch to figure out and test which port number your Arduino is talking on. A "handshake" establishes that Arduino and Processing are listening/talking on the same port.

//Here's a link to a basic handshake tutorial: https://processing.org/tutorials/overview/

myPort = new Serial(this, portName, 9600); //set up your port to listen to the serial port

table.addColumn("id"); //This column stores a unique identifier for each record. We will just count up from 0 - so your first reading will be ID 0, your second will be ID 1, etc.

//the following adds columns for time. You can also add milliseconds. See the Time/Date functions for Processing: https://www.processing.org/reference/

table.addColumn("year");

table.addColumn("month");

table.addColumn("day");

table.addColumn("hour");

table.addColumn("minute");

table.addColumn("second");

//the following are dummy columns for each data value. Add as many columns as you have data values. Customize the names as needed. Make sure they are in the same order as the order that Arduino is sending them!

table.addColumn("sensor1");

table.addColumn("sensor2");

}

void serialEvent(Serial myPort){

val = myPort.readStringUntil('\n'); //The newline separator separates each Arduino loop. We will parse the data by each newline separator.

if (val!= null) { //We have a reading! Record it.

val = trim(val); //gets rid of any whitespace or Unicode nonbreakable space

println(val); //Optional, useful for debugging. If you see this, you know data is being sent. Delete if you like.

float sensorVals[] = float(split(val, ',')); //parses the packet from Arduino and places the valeus into the sensorVals array. I am assuming floats. Change the data type to match the datatype coming from Arduino.

TableRow newRow = dataTable.addRow(); //add a row for this new reading

newRow.setInt("id", table.lastRowIndex());//record a unique identifier (the row's index)

//record time stamp

newRow.setInt("year", year());

newRow.setInt("month", month());

newRow.setInt("day", day());

newRow.setInt("hour", hour());

newRow.setInt("minute", minute());

newRow.setInt("second", second());

//record sensor information. Customize the names so they match your sensor column names.

newRow.setFloat("sensor1", sensorVals[0]);

newRow.setFloat("sensor2", sensorVals[1]);

readingCounter++; //optional, use if you'd like to write your file every numReadings reading cycles

//saves the table as a csv in the same folder as the sketch every numReadings.

if (readingCounter % numReadings ==0)//The % is a modulus, a math operator that signifies remainder after division. The if statement checks if readingCounter is a multiple of numReadings (the remainder of readingCounter/numReadings is 0)

{

fileName = str(year()) + str(month()) + str(day()) + str(dataTable.lastRowIndex()); //this filename is of the form year+month+day+readingCounter

saveTable(dataTable, fileName); //Woo! save it to your computer. It is ready for all your spreadsheet dreams.

}

void draw()

{

//visualize your sensor data in real time here! In the future we hope to add some cool and useful graphic displays that can be tuned to different ranges of values.

}

Additional Resources

All about Tables in Processing: https://www.processing.org/reference/Table.html
The Arduino Software Serial Library: http://arduino.cc/en/Reference/softwareSerial
Arduino data types (a must-read before you choose the data type for your data input): http://arduino.cc/en/Reference/HomePage

23 thoughts on “How To Save Data from Arduino To A .csv File Using Processing”

Joel says:

May 30, 2015 at 6:22 am

It looks like line 27 of the Arduino code may have meant to say

#include

Reply
Joel says:

May 30, 2015 at 6:24 am

Well, it looks like the same thing happened to my comment. Maybe the browser thought it was an HTML tag.

I’m assuming the include statement should be to SoftwareSerial.h.

Reply
Elaine Laguerta says:

June 10, 2015 at 10:02 am

Hi Joel,

Apologies for the delay in replying. Thanks for the comment! You are correct about line 27, I’ve updated the code. I hope it works for you, please comment if you see any other errors.

Reply
THULASI RAM says:

August 17, 2015 at 1:54 am

processing code shows me errors can you help me with it..

Reply
Dmitry says:

September 18, 2015 at 8:04 pm

Arduino code:
Line 35: typo, sensorPin3
Line 49: float sensorVals[] = {0,0,0}, but in 59-61 and 68-72 are used different undefined variables.

Processing code:
Line 29: Table dataTable, but further “table” is used.

Variable ‘val’ undefined, suppose to be String.

And for me it doesn’t work, it gives “NullPointerException”, pointing to the line 67

Reply
1. mehnaz says:

  July 14, 2016 at 3:08 pm

  I got the same rejection.Does anyone know how to fix it? please help.
  Thanks

  Reply
rich says:

October 22, 2015 at 12:42 pm

I am still getting the error on line 27 #include SoftwareSerial.h

it says #include expects “filename” or

also, line 52 void setup(){
returns the error expected ‘,’ or ‘;’ before void. Sorry, I am new to this so it is throwing me for a loop.

Reply
1. Khang says:

  May 12, 2016 at 10:11 am

  #include

  Reply
wireRed says:

March 23, 2016 at 2:28 am

Same here with me, I’ve got null pointer exception error

Reply
Amit Gupta says:

May 3, 2016 at 10:26 am

for arduino code:
SoftwareSerial.h should be between.

I some how debugged the code for arduino.
but unable to solve problem in processing code.
I assigned val as string but after that it is showing error as Null pointer exception.
kindly help me out to get out of this problem.

Reply
1. Alex says:

  September 27, 2016 at 6:05 am

  Add
  dataTable = new Table();
  in setup()

  Reply
2. Jonas Krafft says:

  November 15, 2016 at 9:29 am

  I think i have the NullPointerException solution.

  on line 29 when the Table is declared it should be:
  Table dataTable = new Table();

  Reply
3. Zain says:

  December 23, 2016 at 4:28 am

  write table=new Table(); in void setup to get rid of null pointer exception

  Reply
javi says:

October 12, 2016 at 4:34 am

For all of you having problems with the processing code, you can use this version.

I have introduce a try catch enviroment inside the savefile so regarding any reading error the code doesn’t stop.

Table also is define as new table so there should not be anymore the issue with Null pointer.

Cheers,

Javi

Copy here:

/*
Saving Values from Arduino to a .csv File Using Processing – Pseduocode

This sketch provides a basic framework to read data from Arduino over the serial port and save it to .csv file on your computer.
The .csv file will be saved in the same folder as your Processing sketch.
This sketch takes advantage of Processing 2.0’s built-in Table class.
This sketch assumes that values read by Arduino are separated by commas, and each Arduino reading is separated by a newline character.
Each reading will have it’s own row and timestamp in the resulting csv file. This sketch will write a new file a set number of times. Each file will contain all records from the beginning of the sketch’s run.
This sketch pseduo-code only. Comments will direct you to places where you should customize the code.
This is a beginning level sketch.

The hardware:
* Sensors connected to Arduino input pins
* Arduino connected to computer via USB cord

The software:
*Arduino programmer
*Processing (download the Processing software here: https://www.processing.org/download/
*Download the Software Serial library from here: http://arduino.cc/en/Reference/softwareSerial

Created 12 November 2014
By Elaine Laguerta
http://url/of/online/tutorial.cc

*/

import processing.serial.*;
Serial myPort; //creates a software serial port on which you will listen to Arduino
Table dataTable; //table where we will read in and store values. You can name it something more creative!

int numReadings = 100; //keeps track of how many readings you’d like to take before writing the file.
int readingCounter = 0; //counts each reading to compare to numReadings.

String fileName, val;
void setup()
{
String portName = Serial.list()[2];
//CAUTION: your Arduino port number is probably different! Mine happened to be 1. Use a “handshake” sketch to figure out and test which port number your Arduino is talking on. A “handshake” establishes that Arduino and Processing are listening/talking on the same port.
//Here’s a link to a basic handshake tutorial: https://processing.org/tutorials/overview/

myPort = new Serial(this, portName, 9600); //set up your port to listen to the serial port
dataTable = new Table();

dataTable.addColumn(“id”); //This column stores a unique identifier for each record. We will just count up from 0 – so your first reading will be ID 0, your second will be ID 1, etc.

//the following adds columns for time. You can also add milliseconds. See the Time/Date functions for Processing: https://www.processing.org/reference/
dataTable.addColumn(“year”);
dataTable.addColumn(“month”);
dataTable.addColumn(“day”);
dataTable.addColumn(“hour”);
dataTable.addColumn(“minute”);
dataTable.addColumn(“second”);

//the following are dummy columns for each data value. Add as many columns as you have data values. Customize the names as needed. Make sure they are in the same order as the order that Arduino is sending them!
dataTable.addColumn(“sensor1”);
dataTable.addColumn(“sensor2”);

}

void serialEvent(Serial myPort){
try {
val = myPort.readStringUntil(‘\n’); //The newline separator separates each Arduino loop. We will parse the data by each newline separator.
if (val!= null) { //We have a reading! Record it.
val = trim(val); //gets rid of any whitespace or Unicode nonbreakable space
println(val); //Optional, useful for debugging. If you see this, you know data is being sent. Delete if you like.
float sensorVals[] = float(split(val, ‘,’)); //parses the packet from Arduino and places the valeus into the sensorVals array. I am assuming floats. Change the data type to match the datatype coming from Arduino.

TableRow newRow = dataTable.addRow(); //add a row for this new reading
newRow.setInt(“id”, dataTable.lastRowIndex());//record a unique identifier (the row’s index)

//record time stamp
newRow.setInt(“year”, year());
newRow.setInt(“month”, month());
newRow.setInt(“day”, day());
newRow.setInt(“hour”, hour());
newRow.setInt(“minute”, minute());
newRow.setInt(“second”, second());

//record sensor information. Customize the names so they match your sensor column names.
newRow.setFloat(“sensor1”, sensorVals[0]);
newRow.setFloat(“sensor2”, sensorVals[1]);

readingCounter++; //optional, use if you’d like to write your file every numReadings reading cycles

//saves the table as a csv in the same folder as the sketch every numReadings.
if (readingCounter % numReadings ==0)//The % is a modulus, a math operator that signifies remainder after division. The if statement checks if readingCounter is a multiple of numReadings (the remainder of readingCounter/numReadings is 0)
{
fileName = str(year()) + str(month()) + str(day()) + str(dataTable.lastRowIndex()); //this filename is of the form year+month+day+readingCounter
saveTable(dataTable, fileName, “csv”); //Woo! save it to your computer. It is ready for all your spreadsheet dreams.
}
}
}
catch(RuntimeException e) {
e.printStackTrace();
}
}

void draw()
{
//visualize your sensor data in real time here! In the future we hope to add some cool and useful graphic displays that can be tuned to different ranges of values.
}

Reply
1. erphand says:

  April 4, 2019 at 7:05 pm

  thic code is worked, but why my output file have no extention on it ? just a blank file. and should rename it manually into csv before open it, and also the file name is no “0” number, ex: It should show 085620190405 (hours[08]+minutes[56]+year[2019]+month[04]+day[05]), but it just show 856201945. can you help ?

  Reply
Tom says:

October 14, 2016 at 5:07 pm

To avoid the nullpointer exception, put this in the setup:

dataTable = new Table();

Reply
Theodore Bertrand-Price says:

November 30, 2016 at 5:55 am

Okay guys, the big problem with the code is that it doesn’t take into account the fact that Processing doesn’t truly understand how to handle numbers, int or float or otherwise. If you are using an array to feed into the Processing code, assign it as an array of strings. When I made that change, the code worked perfectly.
(of course including the other revisions listed above also helped get the code to a finished state)

Reply
1. Anjalee says:

  August 22, 2017 at 12:31 pm

  Could you please post the final version of the code that you came up with? I am trying to get it to work but can’t seem to figure it out. Thanks 🙂

  Reply
Bong says:

July 4, 2017 at 7:29 am

How about if I ma not using sensor? I will instead use a switch on pin 8, 9, 10, 11 of arduino input. I just want to record the high and low state of the 4 channels.
I edited the below code, pls help to check if any correction.
Thanks.
import processing.serial.*;

int Oven_P1_1 = 8;
int Oven_P1_2 = 9;
int Oven_P5_1 = 10;
int Oven_P5_2 = 11;

Serial myPort;
Table table;

int numReadings = 100;
int readingCounter = 0

String filename, val;

void setup() {

String portName = Serial.list()[5];
myPort = new Serial(this, portName, 9600);
table = new Table();
table.addColumn(“id”);
table.addColumn(“year”);
table.addColumn(“month”);
table.addColumn(“day”);
table.addColumn(“hour”);
table.addColumn(“minute”);
table.addColumn(“second”);
table.addColumn(“Oven_P1_1”);
table.addColumn(“Oven_P1_2”);
table.addColumn(“Oven_P5_1”);
table.addColumn(“Oven_P5_2”);
}

void serialEvent(Serial myPort)
try{
val = myPort.readStringUntil(‘\n’);
if (val!= null) {
val = trim(val);
println(val);
//float sensorVals[] = float(split(val, ‘,’)); // i dont need floats because I just need high or low input in 4 channel., what other function should I use.
TableRow newRow = table.addRow();
newRow.setInt(“id”, table.lastRowIndex());
newRow.setInt(“year”, year());
newRow.setInt(“month”, month());
newRow.setInt(“day”, day());
newRow.setInt(“hour”, hour());
newRow.setInt(“minute”, minute());
newRow.setInt(“second”, second”);
newRow.setInt(“Oven_P1_1”, ovenVals[0]);
newRow.setInt(“Oven_P1_2”, ovenVals[1]);
newRow.setInt(“Oven_P5_1”, ovenVals[2]);
newRow.setInt(“Oven_P5_2”, ovenVals[3]);

readingCounter++;

if (reading Counter %numReadings ==0)
{
saveTable(table, “data/OvenStatus.csv”);
}
}
}

void draw(){

}

Reply
Jasmin Dhanani says:

October 31, 2017 at 8:28 am

Hey,
can somebody help? I am very new to this and in line 36-40 it tells me: the variable “val” does not exist.

How can I fix this?

Thank you very much,

Jas

Reply
1. Felix says:

  November 25, 2017 at 1:26 pm

  Just write String before val ^^

  Reply
Asaboro Daniel says:

April 12, 2019 at 10:26 am

please can someone send me the updated code for outputting reading from arduino sensor to csv format..thanks..

Reply
usman butt says:

May 20, 2019 at 9:13 am

I have run the code Bong. But no file is being written in the sketch folder. need help.

Cheers,
Usman

Reply

HACKERSCAPES

How To Save Data from Arduino To A .csv File Using Processing

23 thoughts on “How To Save Data from Arduino To A .csv File Using Processing”

Leave a Reply Cancel reply

Environmental Sensing and Responsive Design
